Rotary Solenoid
--
Item No/Type:
RG-RT-4925
Name:
Rotary Solenoid
Description:
Weight: 200g
UNIT: mm
Shown De-energized
Right Hand Rotation
COIL DATA
Heat Sink: 190 x 190 x 3mm (alumimum)
Return spring torque: 0.026~0.035 N.m
Duty cycle(%)=
X 100%
Continuous
(100%)
Or less
(75%)
Or less
(50%)
Or less
(25%)
Or less
(10%)
MAX. "on" time in seconds
110
100
36
10
Watts at 20
o
C
21
28
42
84
210
Ampere-turns at 20
o
C
842
966
1190
1685
2660
Gross starting torque at 20
o
C (N.m)
A:25
o
0.22
0.3
0.47
0.84
1.39
B:35
o
0.104
0.15
0.24
0.47
0.84
C:45
o
0.081
0.127
0.195
0.39
0.725
D:67.5
o
0.058
0.081
0.127
0.23
0.45
E:95
o
0.022
0.035
0.046
0.098
0.185
Type no.
Resistance (20
o
C)
±10%
No. turns
Volts DC
RG-RT-4925
7.6AA
3.2
360
7.6
8.7
11
15
24
RG-RT-4925
9.5AA
4.91
440
9.5
11
13
19
30
RG-RT-4925
12AA
7.72
550
12
14
17
24
38
RG-RT-4925
15AA
11.1
636
15
17
21
30
48
RG-RT-4925
19AA
18.8
840
19
22
27
38
60
RG-RT-4925
24AA
30.5
1088
24
28
34
48
76
RG-RT-4925
30AA
44.9
1275
30
34
43
60
95
RG-RT-4925
38AA
70.9
1596
38
43
54
76
120
RG-RT-4925
48AA
109
1974
48
56
67
95
150
RG-RT-4925
60AA
175
2496
60
69
85
120
190
RG-RT-4925
76AA
270
3042
76
87
107
151
239
RG-RT-4925
95AA
414
3600
95
109
134
190
301
RG-RT-4925
122AA
610
4200
122
140
173
245
386
RG-RT-4925
151AA
940
5200
151
174
213
301
-
RG-RT-4925
190AA
1560
6820
190
219
268
379
-

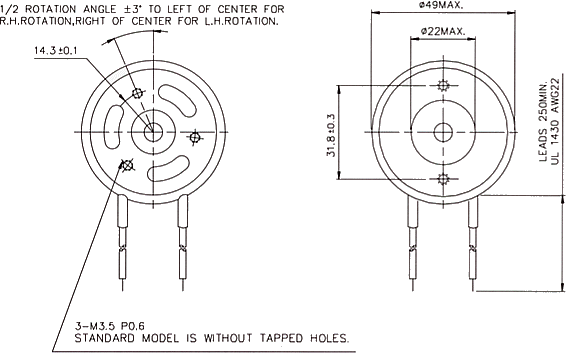

: Rotation Direction and Angle

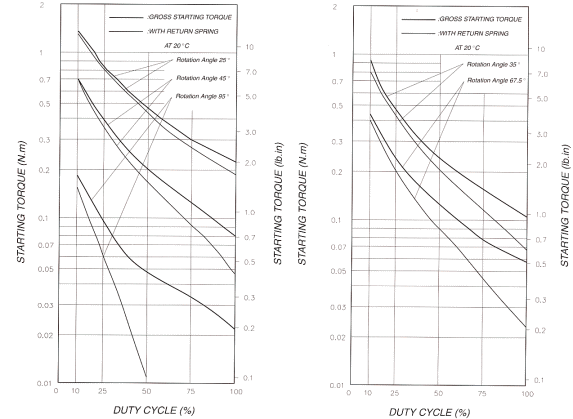

DUTY CYCLE Vs STARTING TORQUE

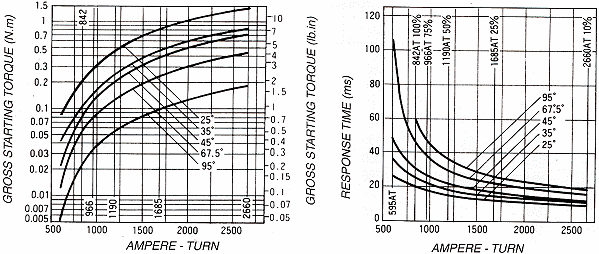

AMPERE TURN Vs GROSS STARTING TORQUE
AMPERE-TURN Vs RESPONSE TIME
