-- Rotary Solenoid --
Item No/Type:RG-RT-3421
Name:Rotary Solenoid
Rotary Solenoid
Description:




                              Weight: 97g

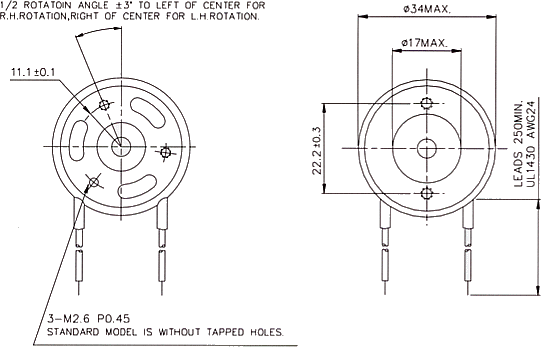

                                  UNIT: mm

                                    Shown De-energized

                                    Right Hand Rotation


























                                        COIL DATA
                                        Heat Sink: 120 x 120 x 3mm (alumimum)

                                          Return spring torque: 0.011~0.017 N.m













                                        Duty cycle(%)=  X 100%
                                        Continuous

                                          (100%)
                                        Or less

                                          (75%)
                                        Or less

                                          (50%)
                                        Or less

                                          (25%)
                                        Or less

                                          (10%)




                                        MAX. "on" time in seconds

                                        107
                                        100
                                        36
                                        8




                                        Watts at 20oC
                                        9
                                        12
                                        18
                                        36
                                        90




                                        Ampere-turns at 20oC
                                        535
                                        618
                                        756
                                        1070
                                        1690




                                        Gross starting torque at 20oC (N.m)
                                        A:25o
                                        0.04
                                        0.052
                                        0.081
                                        0.15
                                        0.31




                                        B:35o
                                        0.029
                                        0.04
                                        0.063
                                        0.115
                                        0.23




                                        C:45o
                                        0.017
                                        0.022
                                        0.04
                                        0.092
                                        0.16




                                        D:67.5o
                                        0.012
                                        0.017
                                        0.022
                                        0.046
                                        0.075




                                        Type no.
                                        Resistance (20oC)

                                             ±10%
                                        No. turns
                                        Volts DC




                                        RG-RT-34214.2AA
                                        1.97
                                        252
                                        4.2
                                        4.8
                                        5.9
                                        8.4
                                        13




                                        RG-RT-34215.3AA
                                        3.26
                                        328
                                        5.3
                                        6.1
                                        7.5
                                        11
                                        17




                                        RG-RT-34216.7AA
                                        5.04
                                        405
                                        6.7
                                        7.7
                                        9.4
                                        13
                                        21




                                        RG-RT-34218.4AA
                                        8.02
                                        510
                                        8.4
                                        9.7
                                        12
                                        17
                                        26




                                        RG-RT-342110AA
                                        12.21
                                        627
                                        10
                                        12
                                        15
                                        21
                                        33




                                        RG-RT-342113AA
                                        19.2
                                        780
                                        13
                                        15
                                        19
                                        26
                                        42




                                        RG-RT-342117AA
                                        31.8
                                        1008
                                        17
                                        19
                                        24
                                        33
                                        53




                                        RG-RT-342121AA
                                        47
                                        1215
                                        21
                                        24
                                        30
                                        42
                                        66




                                        RG-RT-342126AA
                                        75.3
                                        1530
                                        26
                                        31
                                        37
                                        53
                                        84




                                        RG-RT-342133AA
                                        120.5
                                        1900
                                        33
                                        38
                                        47
                                        67
                                        105




                                        RG-RT-342142AA
                                        198
                                        2486
                                        42
                                        48
                                        59
                                        84
                                        133




                                        RG-RT-342153AA
                                        280
                                        2700
                                        53
                                        61
                                        75
                                        106
                                        167




                                        RG-RT-342167AA
                                        426
                                        3350
                                        67
                                        77
                                        94
                                        133
                                        210




                                        RG-RT-342184AA
                                        648
                                        4050
                                        84
                                        97
                                        118
                                        168
                                        264




                                        RG-RT-3421105AA
                                        1020
                                        5050
                                        105
                                        122
                                        149
                                        211
                                        333




                                        RG-RT-3421133AA
                                        1667
                                        6590
                                        133
                                        153
                                        187
                                        265
                                        419












                                         : Rotation Direction and Angle

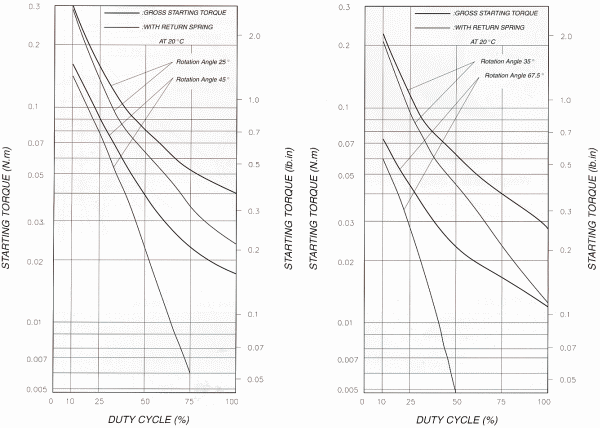

                                  DUTY CYCLE Vs STARTING TORQUE

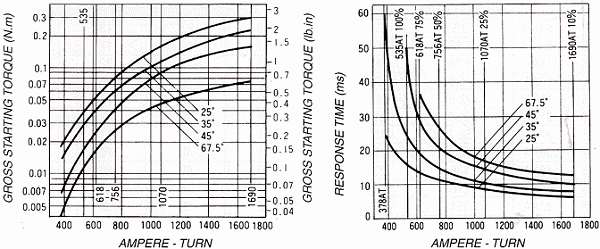

                                  AMPERE TURN Vs GROSS STARTING TORQUE
                                  AMPERE-TURN Vs RESPONSE TIME
